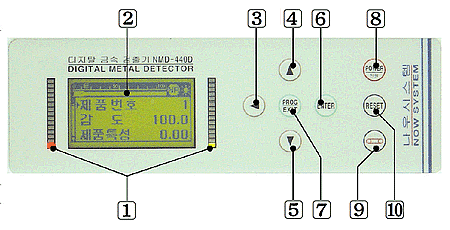

No. |
Term |
Description |
||
1 |
LED bar lamp |
- It is normal operating status in case one red lamp is On at he left bottom of LED bar and one green lamp is On at the right bottom of LED bar. It showes if metal is detected or not | ||
2 |
LCD display |
- It showes the list of contents such as product no, sensitivity and product effect value. | ||
3 |
Cursor move button |
- It moves the cursor when you change the value. | ||
4 |
Value raising button |
- It raise the numerical value. | ||
5 |
Value lowering button |
- It lower the numerical value. | ||
6 |
Entering button |
- It is for saving after setting the value. | ||
7 |
In&out setup button |
- Starting and ending button for setup. | ||
8 |
Power button |
- Power on/off button. | ||
9 |
Conveyor button |
- Conveyor on/off button. | ||
10 |
Reset button |
- Warning lamp off button. |
